Mattress Border Quilting Machine

BordaMax mattress border quilting machinery by MPT Group

Computer Controlled Vertical Stitch Mattress Border Machine.

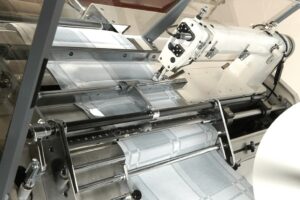

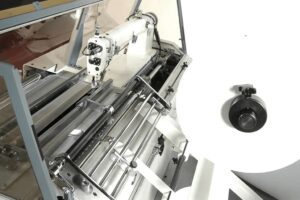

The BordaMax vertical stitch mattress border machine utilises a high-speed double lock chain stitch and self-lubricating sewing head.

It automatically hems the mattress border as it produces high quality vertical stitched mattress borders up to 260mm wide on the standard machine.

For wider borders we offer our 508mm model, the BordaMax-2. With a material run-out monitoring system and twin material clamping system, the BordaMax also boasts electronic stitch length and electronic flute width adjustment.

This highly automated mattress border stitching machine comes with automatic needle positioning, an automatic shut-down sensor which can detect material blockage in the roller, and automatic rewind with a quick release mandrel.

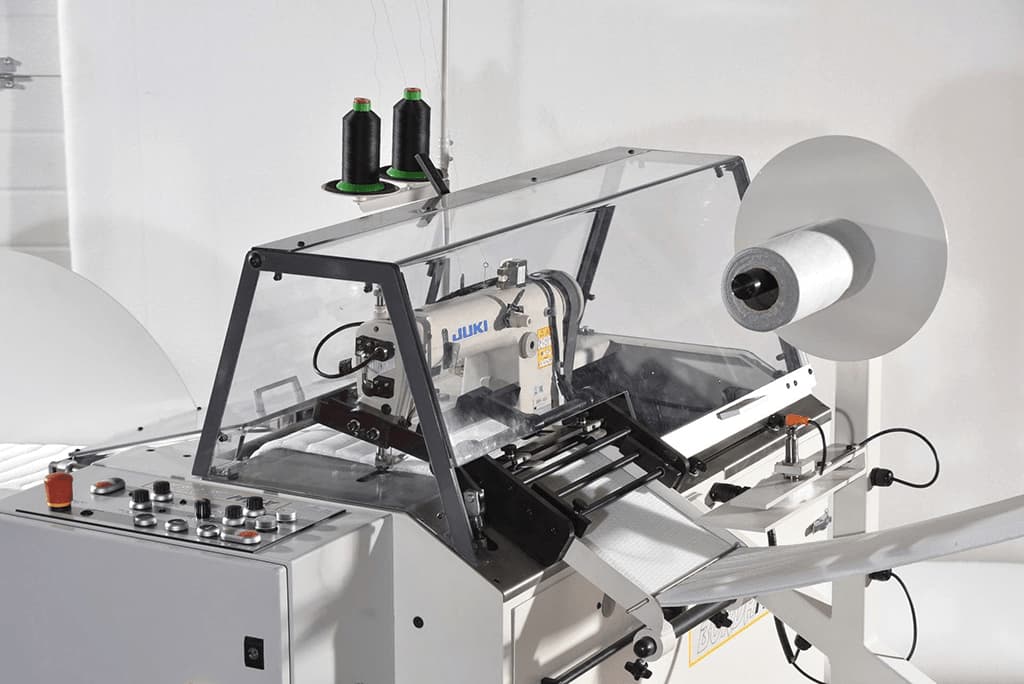

Threading, cleaning and minor sewing adjustments could not be easier with the powered head exit facility and for ease of loading the rollers are opened by pneumatic control. Other features include thread break detectors and a safety acoustic hood.

This fully automatic mattress border stitching machine really is an asset in any mattress manufacturing operation. MPT Group’s mattress machinery range covers every aspect of the mattress manufacturing process, from mattress quilting services, mattress border quilting equipment and mattress spring unit machinery, through to mattress role packing machines.

All of our mattress machinery is designed to respond to the rising consumer demand for more technologically advanced mattresses and with the needs of the client in mind, so that your mattress production operations are fast, efficient and reliable.

REQUEST PRICING

Fully automatic operation
Safety acoustic hood
Border widths: 60mm – 260mm (hemmed)
508mm sewing head option available
Stitched line widths: 12mm – 150mm
Twin line effect

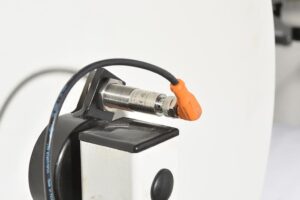

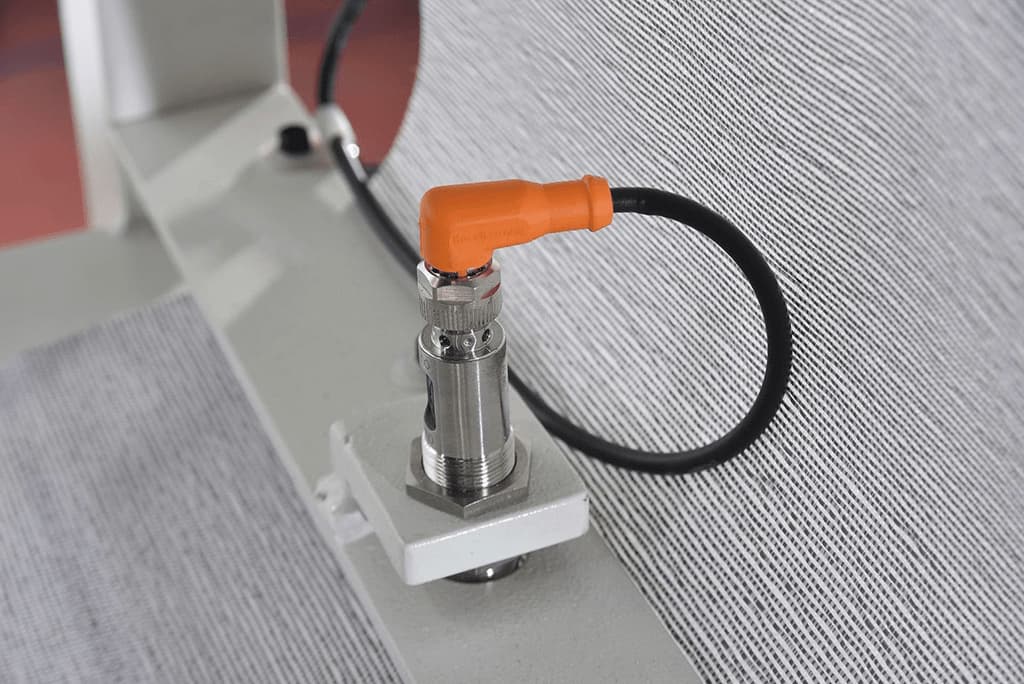

Material run-out monitoring system
Thread break detectors

Sewing Head & Controls

Automatic needle positioning
Quick width adjustment
Electronic stitch length adjustment
Electronic flute width adjustment
Twin material clamping system
Powered head exit facility (to ease threading and cleaning and minor sewing adjustments)
