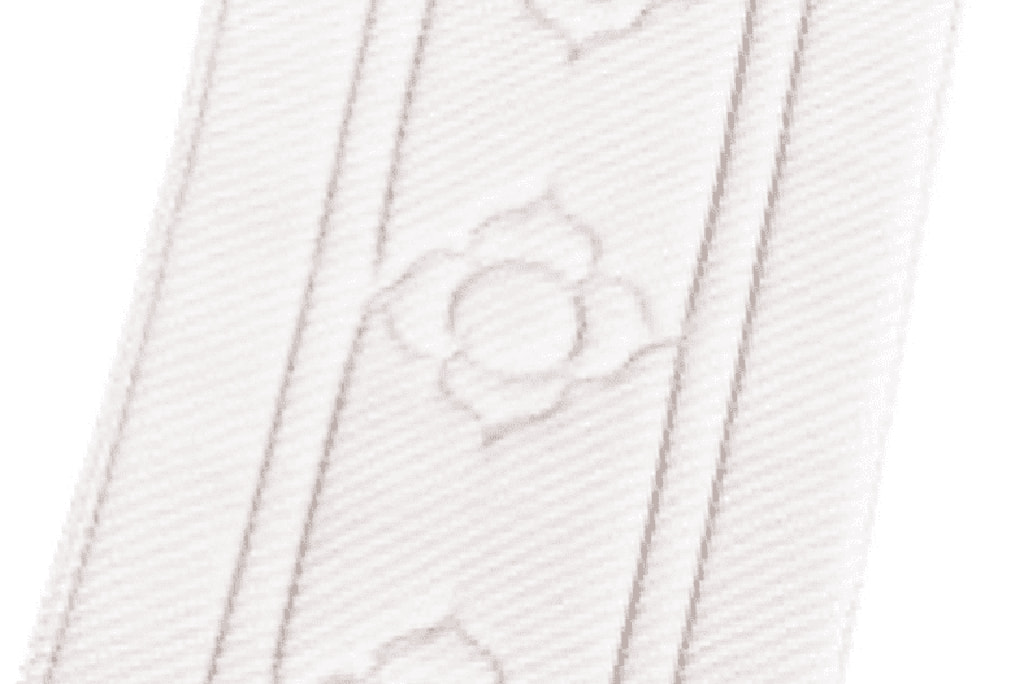

Using a Windows operating system with integrated CAD system, the pattern effects that can be achieved on your mattress borders are unlimited. The computerised pattern adjustment guarantees increased precision of border effects.
Mattress Quilting Machines

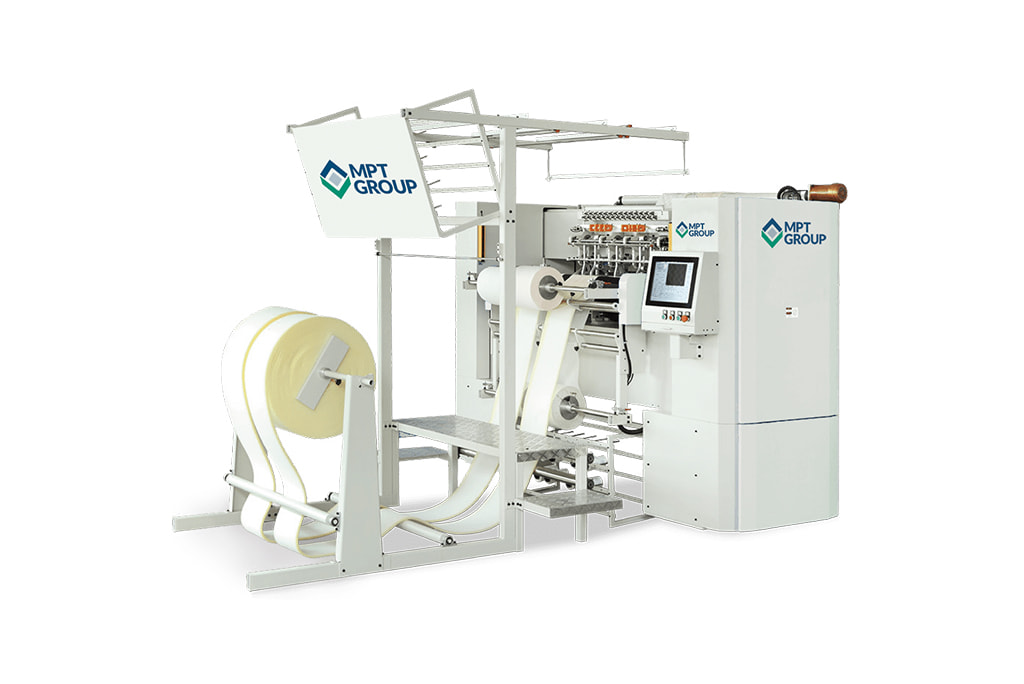

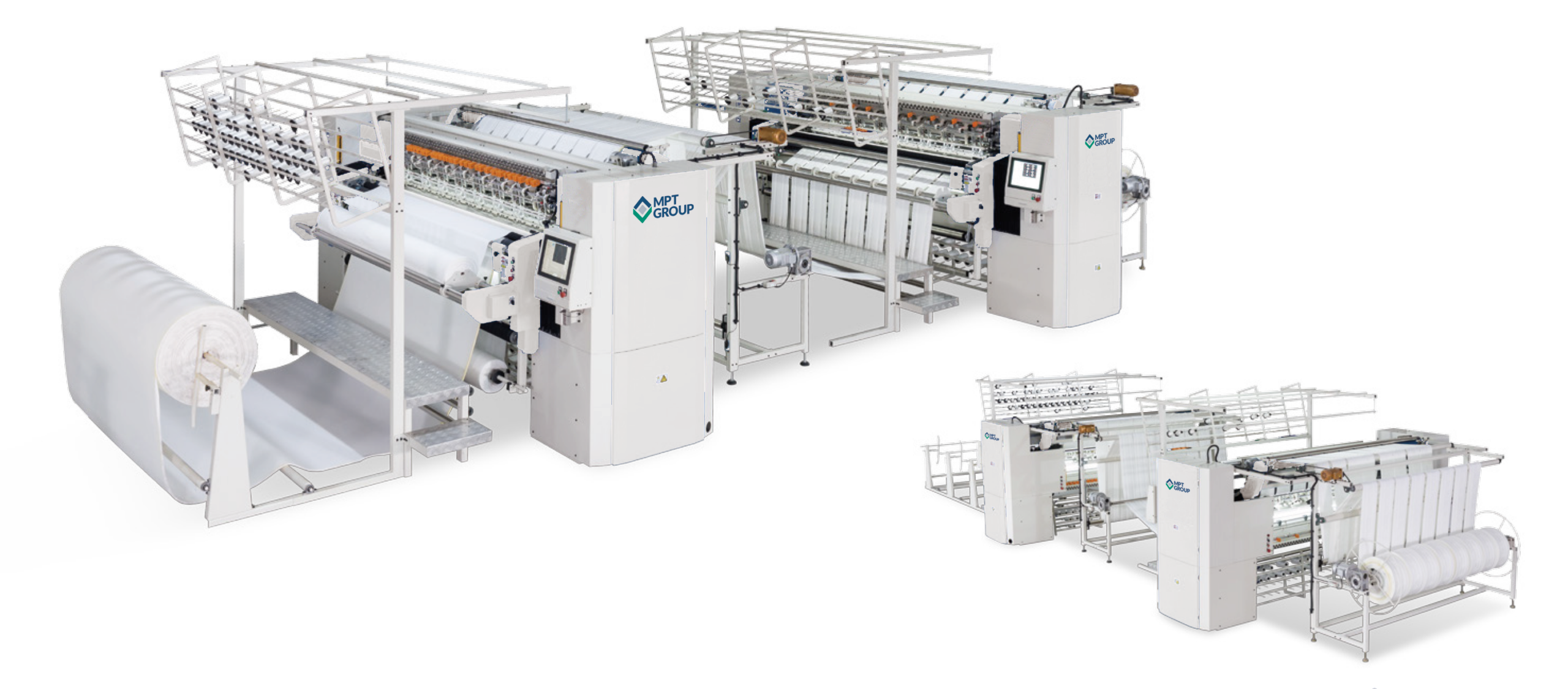

iQuilt Bordermaster mattress quilting machinery by MPT Group
High-speed Multi-needle Multi-pattern Mattress Border Quilting Machine
The iQuilt Bordermaster is a high-speed automated chain stitch mattress border quilting machine capable of producing today’s modern mattress border effects.
The split looper design allows for fast adjustment of timing and the batch quilting and metering facility add to this mattress quilting machine’s features.
With a sewing speed of 1200rpm, the iQuilt Bordermaster can produce up to 800 metres of mattress border per hour to a quilting width of 2400mm, a quilting thickness of 80mm and a stitch length of 1-6mm.
With automatic thread detection, automatic thread trimming and an integrated slitting device, the automated iQuilt Bordermaster mattress quilting machine provides a complete and easy-to-use service. A multi-needle quilting solution for any business small or large.
MPT Group’s mattress machinery range covers every aspect of the mattress manufacturing process, from mattress quilting services, mattress border quilting equipment and mattress spring unit machinery, through to mattress role packing machines.
All of our mattress machinery is designed to respond to the rising consumer demand for more technologically advanced mattresses and with the needs of the client in mind, so that your mattress production operations are fast, efficient and reliable.
- Maximum speed up to 1200rpm
- Batch quilting and metering facility
- Windows operating system with integrated CAD system
- Split looper design for faster adjustment of timing
- Computerised pattern adjustment, ensuring increased precision of border effects
- Integrated slitting device
- Automatic thread detection and automatic thread trimming
- Quilting width < 2400mm
- Power supply 380V 50Hz
- Total power 7.5kW
- Quilting thickness < 80mm
- Stitch length 1-6mm
- Overall dimensions 6500mm x 4700mm x 2800mm
- Rotating speed of needle 1400rpm
- Needle array pitch 25.4mm (12.7mm optional)
- Total weight 5000kg
